New products: FTK series of seamless control matrix host system
Control System of FTK Series Seamless Hybrid Matrix Host
FTK series hybrid matrix switcher provides HDMI, DVI, VGA, YPbPr, SDI signal local direct input, and HDMI, DVI, VGA, SDI direct output, DVI seamless output. In addition, it also provides twisted pair (HDBaseT) input and output board, with twisted pair transmitter can be extended through the twisted pair input and output signal transmission distance to 100M, also provides Fiber (fiber) input and output board Card, with fiber optic transmitter through a single-core multi-mode fiber to extend the input and output signal transmission distance to 300M, but also replace the use of single-mode fiber transmission single-mode transceiver to enhance the transmission distance of 20KM. The leading all-digital signal processing technology ensures that the signal is handled without distortion and sends the highest quality picture to the display terminal.
Features:
● input and output: FTK08 maximum support 8 signal input, 8 signal output,
● FTK16 maximum support 16 signal input, 16 signal output,
● FTK32 supports up to 32 signal inputs and 32 signal outputs.
● a card 4-way design, each board can be configured up to two kinds of interface hybrid design.
● Plug-in structure: input signal support VIDEO, VGA, YPbPr, DVI, HDMI, 3G-SDI, Fiber, twisted pair (HDBaseT), output signal support HDMI, VGA format, DVI, twisted pair (HDBaseT ), Fiber (fiber). Card-type mechanism, extremely easy to expand or replace.
● All output signals support real-time seamless switching output.
● Supports embedded bidirectional infrared and RS-232 control signal switching function (with HDBaseT board).
● Support HDCP management, can be set to encrypt and decrypt HDCP content, to ensure that the source is displayed properly.
● Support EDID management, can store 8 sets of EDID data. Allows the EDID of the output device or the stored EDID to be applied to any input card. The EDID code can be sent to the EDID memory area via the serial port. The EDID code of the current output port can be read out via the serial port.
● With power-down memory function and on-site memory function: with power-off site protection; and can save and call 10 switching status.
● support forward high-speed channel and embedded control signal separation switching mode;
● support full HD: HDPC: 1920 × 1200P @ 60_24bit,
● HDTV: 1920 × 1080P @ 60_36bit;
● luxury crystal buttons and with light-emitting instructions, the current switching information can be obtained directly through the LCD screen, easy to operate.
● Support 3D, HDMI 1.4, HDCP1.4, and DVI 1.0 protocol. Support high color depth, and up to 3.25Gbps rate;
● 2-way RS-232 communication interface, support RS-232 cascade control;
● has a network port, you can remotely control through the Ethernet to support 8 users at the same time; support web control, no need to install the client software;
● Built-in international power supply.

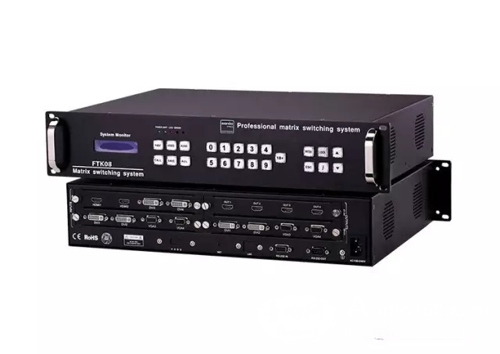

FTK08 8-way seamless hybrid matrix host
Technical Parameters:
interface:
Can be accessed by input card: quantity / input number 2/8
Can be connected to the output card: number / output number 2/8
Support for input card type: DVI; HDMI; SDI; VGA; twisted pair (HDBaseT), Fiber (fiber)
Support for output card type: DVI; HDMI; SDI; VGA; twisted pair (HDBaseT), Fiber (fiber)
Interface bandwidth: 2.25Gbps, all digital (total 6.75Gbps, each color is 2.25Gbps)
In the case of Serial control
Serial control interface: RS-232, 9-pin female D-type interface
Baud rate and protocol: baud rate: 9600, data bits: 8 bits, stop bit: 1, no parity bit
Serial control port structure: 2 = TX, 3 = RX, 5 = GND
Ethernet control
Ethernet control interface: RJ-45 female interface
Ethernet Control Protocol: TCP / IP
Ethernet control rate: adaptive 10M / 100M, full duplex or half duplex
Specifications
Power: 100V AC ~ 240V AC, 50/60 Hz, the international adaptive power supply
Maximum power consumption: (IO card with maximum power consumption) 107W
Product weight: (does not contain any card) 5.3kg
Storage, the use of temperature -20 ℃ ~ +70 ℃
Storage, the use of humidity 10% to 90%
Chassis Size: 2U
Size (mm): 483 (L) x 354 (W) x 88 (H)

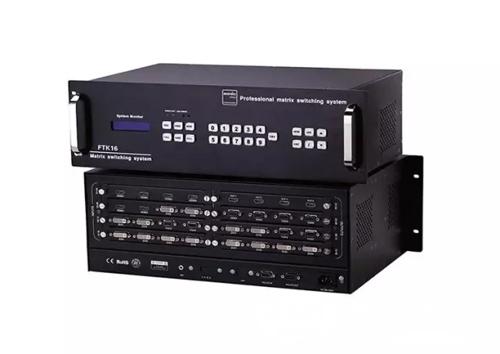

FTK16 16-way seamless hybrid matrix host
Technical Parameters:
Interface:
Accessable cards: Quantity / Number of inputs 4/16
Can be connected to the output card: number / output number 4/16
Support for input card type: DVI; HDMI; SDI; VGA; twisted pair (HDBaseT), Fiber (fiber)
Support for output card type: DVI; HDMI; SDI; VGA; twisted pair (HDBaseT), Fiber (fiber)
Interface bandwidth: 2.25Gbps, all digital (total 6.75Gbps, each color is 2.25Gbps)
Serial control
Serial control interface: RS-232, 9-pin female D-type interface
Baud rate and protocol: baud rate: 9600, data bits: 8 bits, stop bit: 1, no parity bit
Serial control port structure: 2 = TX, 3 = RX, 5 = GND
Ethernet control
Ethernet control interface: RJ-45 female interface
Ethernet Control Protocol: TCP / IP
Ethernet control rate: adaptive 10M / 100M, full duplex or half duplex
Specifications
Power: 100V AC ~ 240V AC, 50/60 Hz, the international adaptive power supply
Maximum power consumption: (IO card with maximum power consumption) 385W
Product weight: (does not contain any card) 5.3kg
Storage, the use of temperature -20 ℃ ~ +70 ℃
Storage, the use of humidity 10% to 90%
Chassis Size: 4U
Size (mm): 483 (L) x 354 (W) x 176 (H)

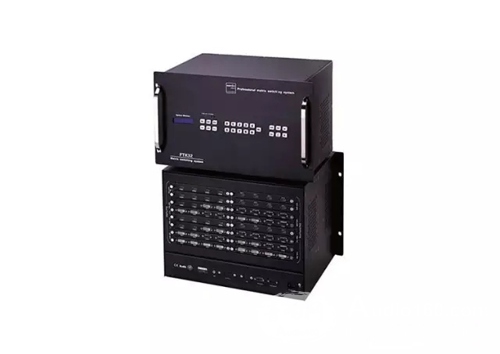

FTK32 32-way seamless hybrid matrix host
Technical Parameters:
Interface:
Accessable cards: Quantity / Number of inputs 8/32
Can be connected to the output card: number / output number 8/32
Support for input card type: DVI; HDMI; SDI; VGA; twisted pair (HDBaseT), Fiber (fiber)
Support for output card type: DVI; HDMI; SDI; VGA; twisted pair (HDBaseT), Fiber (fiber)
Interface bandwidth: 2.25Gbps, all digital (total 6.75Gbps, each color is 2.25Gbps)
Serial control
Serial control interface: RS-232, 9-pin female D-type interface
Baud rate and protocol: baud rate: 9600, data bits: 8 bits, stop bit: 1, no parity bit
Serial control port structure: 2 = TX, 3 = RX, 5 = GND
Ethernet control
Ethernet control interface: RJ-45 female interface
Ethernet Control Protocol: TCP / IP
Ethernet control rate: adaptive 10M / 100M, full duplex or half duplex
Specifications
Power: 100V AC ~ 240V AC, 50/60 Hz, the international adaptive power supply
Maximum power consumption: (IO card with maximum power consumption) 385W
Product weight: (does not contain any card) 5.3kg
Storage, the use of temperature -20 ℃ ~ +70 ℃
Storage, the use of humidity 10% to 90%
Chassis size 8U
Size (mm): 483 (L) x 404 (W) x 352 (H)
